Description

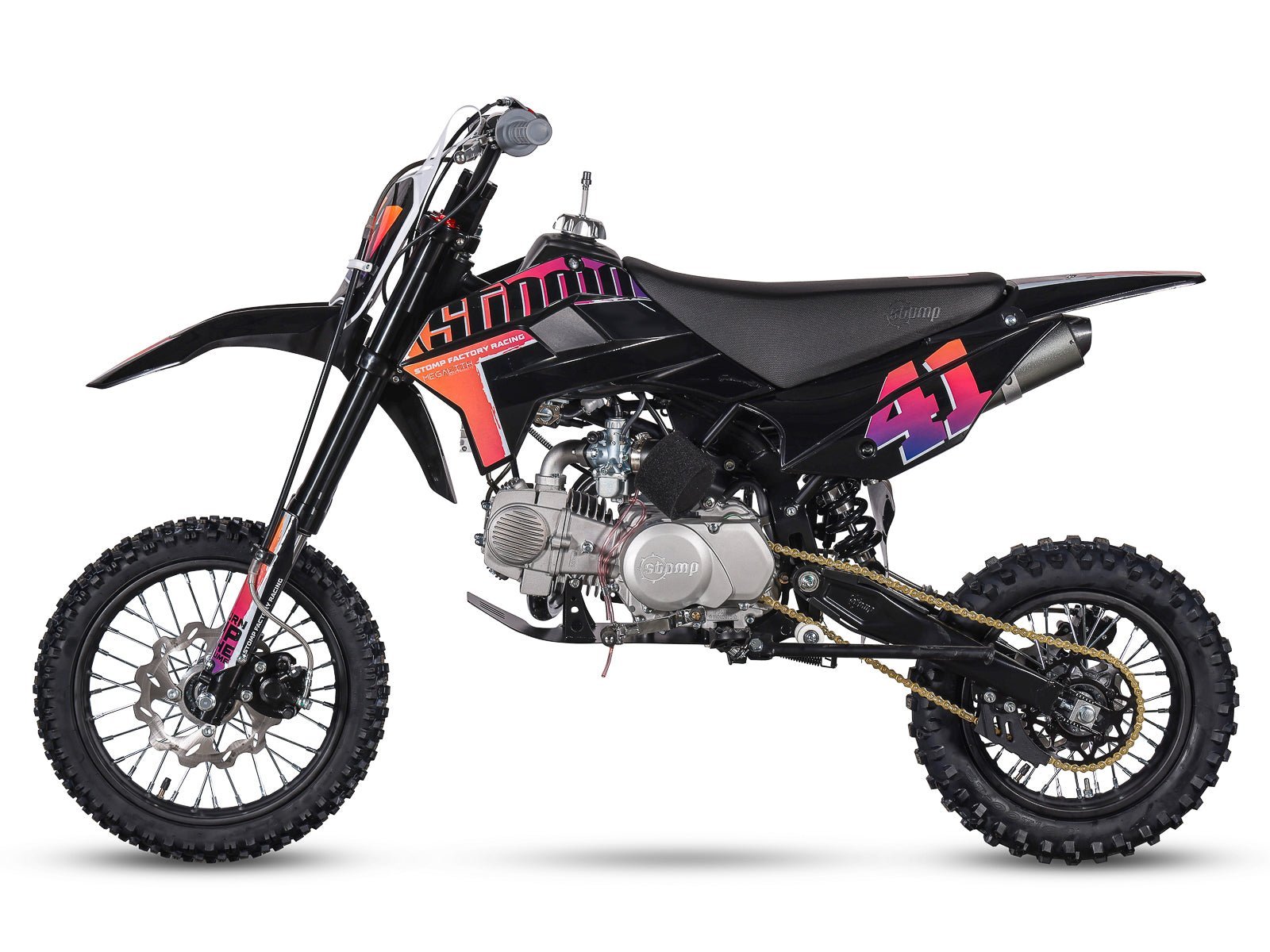

The Z3-140 still boasts the ‘exclusive to Stomp’ SR140C Z40 cam engine. Stomp buy in the YX140 and then fettle the engine with stiffened valve springs & a high lift race cam (known as the Z40 cam). The result is 2hp more than any other YX140 engine on the market.
| ENGINE |
Stomp Racing SR140C Z40 race cam |
| GEARBOX |
Start-in-gear, all-up 4 speed |
| HORSEPOWER |
14hp at rear wheel |
| CARB |
26mm race carb with double foam filter |
| CASES |
Aluminium shot blast finished with Stomp logo |
| COOLER |
CNC oil with braided steel hoses |
| FRAME |
SDG2 heavy duty cradle frame for ultimate stiffness and control |
| SUBFRAME |
Removable rear subframe & bolt on engine hangers |
| SWINGARM |
Revised light-weight tig welded 430mm |
| FORKS |
Entended 735mm cnc machined usd oil filled forks |
| CLAMPS |
Drop forged black anodised triple clamps (yokes) |
| SHOCK |
Nitrogen filled 290mm piggy back shock with steel bushes |
| WHEELS |
14/12 sdg wheels with steel rims for strength |
| TYRES |
Superb durable and tough innova pattern mx |
| CYLINDERS AND CALIPERS |
Improved and revised light-weight brake master cylinders and calipers |
| ROTORS |
Vented light-weight rotors |
| MUFFLER |
Alloy oval exhaust muffler |
| RACE PIPE |
Mandrill bent big bore 32mm OD race pipe |
| FEATURES |
Full length alloy heat shield for style and protection |
| BARS |
Pro-taper style minibike |
| GRIPS |
Renthal style soft rubber grips |
| LEVERS |
Forged alloy clutch & brake levers |
| CHAIN |
420 KMC chain with engraved alloy/nylon chain guide |
| REAR SPROCKET |
420 41t lightweight durable rear |
| FRONT SPROCKET |
420 16t front |
| GEAR SELECTOR |
Fold back gear selector |
| FOOTPEGS |
NEW upgraded PRO |
| FUEL TANK |
NEW reinforced poly resin 5.5 ltr fuel tank with alloy cnc filler cap |
| SEAT |
NEW revised firmer seat with Stomp logo |
| PLASTICS |
NEW Detroit hi impact polypropylene plastics |
| BOARD |
Wrap around crf number board with front brake pipe tidy |
| GRAPHICS |
New Stomp race kit with Stomp race sponsor’s logos |
| SEAT HEIGHT |
82cm |
| WEIGHT |
71kg |
| WEIGHT LIMIT |
15 stone |
